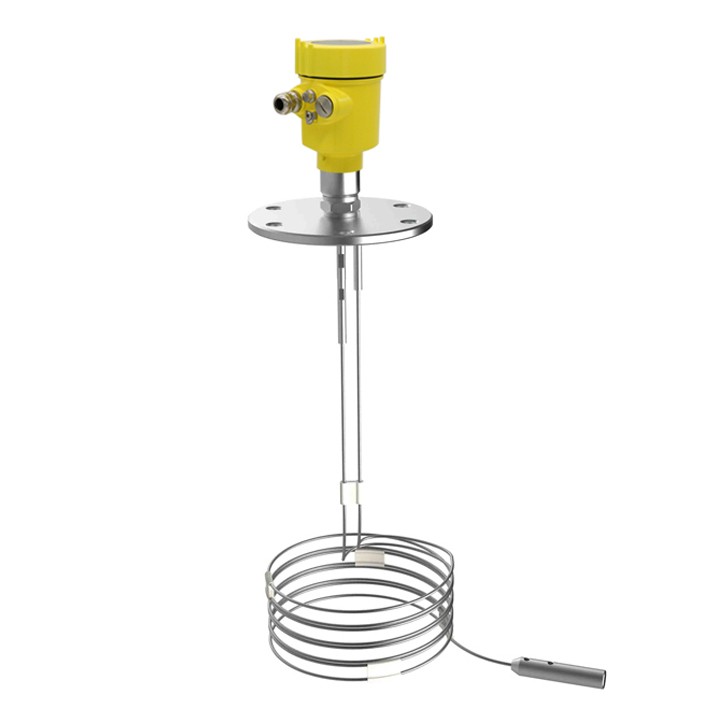

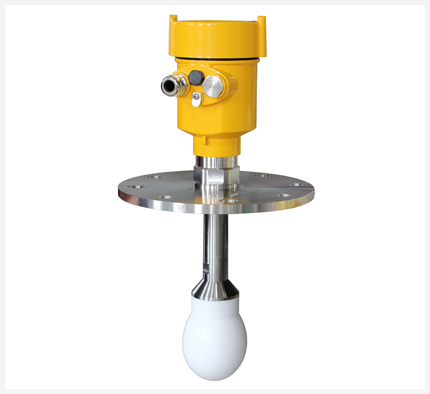

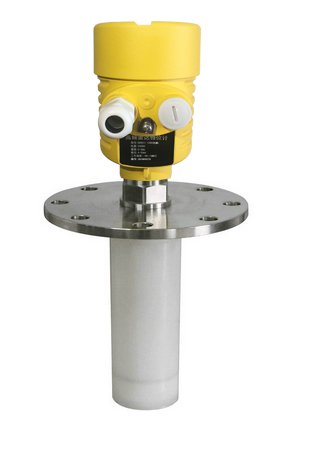

HKRD Radar level meter

Product show Application:Rivers Lakes,Shoal Measuring Range 70meters Process Connection ThreadG1A /Frame/Flange Temperature -40℃~ 100℃ Process Pressure Normal pressure Precision 3mm FrequencyRange 26GHz ProtectionGrade IP67/IP65 PowerSu...

立即咨询立即咨询

咨询电话：400-0592-364

微信：homkom邮箱：service@homkom.com

产品详情

Product show

Application: Rivers	Lakes, Shoal
Measuring Range	70 meters
Process Connection	Thread G1½ A″ /Frame /Flange
Temperature	-40℃ ~ 100℃
Process Pressure	Normal pressure
Precision	± 3mm
Frequency Range	26GHz
Protection Grade	IP67 / IP65
Power Supply	DC (6 - 24V) / Four-wire
Signal output	RS485 / Modbus Protocol
Scene Display	Optional
Shell	Aluminum / Plastic

Technical Parameters

The outer shell
Seal	Silicone rubber
Casing window	Polycarbonate
The ground terminal	Stainless steel
Power supply voltage
The standard type	(16 ~ 26) V DC
Intrinsically safe	(21.6 ~ 26.4) V DC
Power dissipation	Max 22.5mA / 1W
The cable parameters
Cable entrance / plug	1 M20xl.5 cable entrance
Terminal	Conductor cross section 1.0mm²
Output parameters
Output signal	(4 ~ 20) mA/RS485
Communication protocol	HART
Resolution	1.6μA
Fault signal	Constant current output; 20. 5mA, 22mA, 3.9mA
The integral time	(0 ~ 50) s, adjustable
Blind area	The ends of the antenna
The maximum distance measurement	70 meters
Microwave frequency	26GHz
Communication interface	HART communication protocol
The measurement interval	About 1 second
Adjust the time	About 1 second
Working temperature	(-40~100) ℃

Product Description
